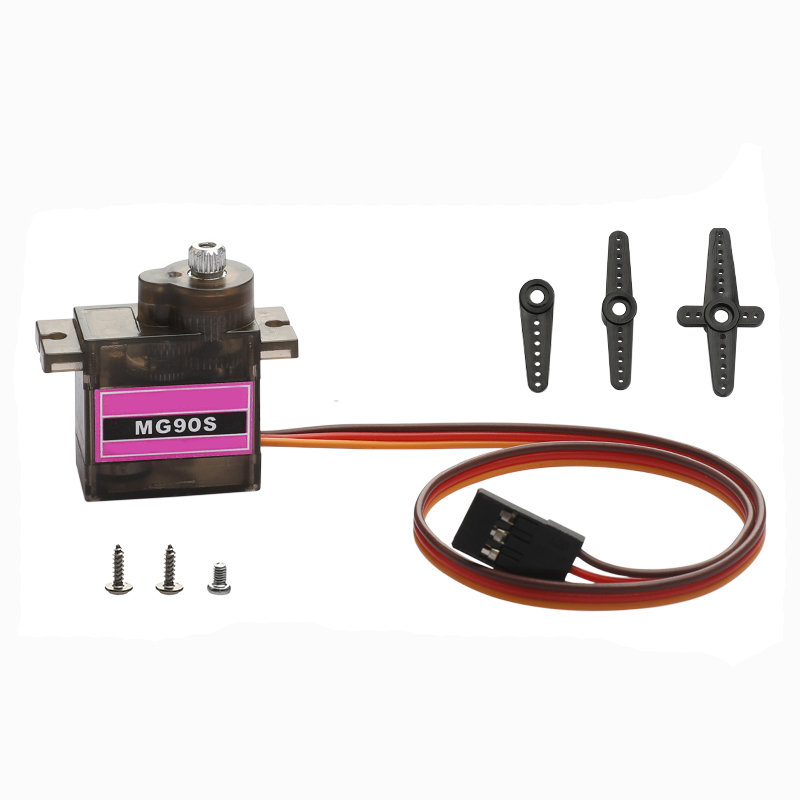

Metal Gear RC Micro Servo 9g MG90S for 450 RC Robot Helicopter
Product name MG90S
Product size 22.4 * 12.1 * 22.8mm
Product weight 13.5g soil 5%
Operating voltage 4.8V 6V
No load speed 0.12sec/60 ° 0.09sec/60 °
No load current 90mA 90mA
Locked rotor torque 1.8kg.cm 2.0kg.cm
Locked rotor current 750mA ± 10% 860mA ± 10%
Pulse width modification
Pulse width 500~2500 usec
Centering error of midpoint position 1500usec ≤ 1 °
Rotation angle 180 °+3 ° (when 500~2500usec)
Dead band width 8usec
